The Plow Point or Diamond Fly Tarp Set-Up

I started using this particular tarp set-up years ago.  At the time everyone I knew called it a diamond fly.  Today the term plow point seems to be more popular, but which ever name it goes by this is definitely one of the quickest and easiest set-ups that you can use.  If you tie off the front of the tarp to a tree you can create a good, rain proof shelter in ten minutes or less.  If you don’t have a convenient tree to use it may take a few minutes more.

Here’s the equipment you will need from your shelter kit:

You will, of course need your tarp.
You will need one of your small, pre-made loops and your bungee cord
You will also need one long stake and six short stakes.
Lastly, you will need a couple of your six foot long guy ropes and one of the little two inch sticks.

Now let’s set up our diamond fly:

First lay out your tarp as pictured below.  It’s best if you can find a location with one tree at the front of the tarp and another tree at the back.  In this case the front of the tarp will be attached to the tree on the left.


Next, attach your small loop to the front corner of the tarp.

Use your bungee cord to attach the front of the tarp to the tree.  You can vary the height according to conditions, but I usually set the front at about chest height.

Grab the back corner of the tarp and pull it back toward the back tree.  Use your long stake to stake the tarp down good and tight so that you have a nice diagonal ridge line.


Use your six short stakes to stake out first one side of the tarp and then the other.  You want to pull the sides out as far as you can without making the ridge line start to sag.



You could stop at this point and call it home, but it only takes a minute to make your set-up a little better. What we’re going to do is attach a guy line between the center loop of the tarp and the back tree.  This will pull the ridge line up a little bit and keep it from sagging down in the middle.  If it’s very far to the back tree you may need to tie two guy lines together to make a long cord. Here’s how you set up the guy line:

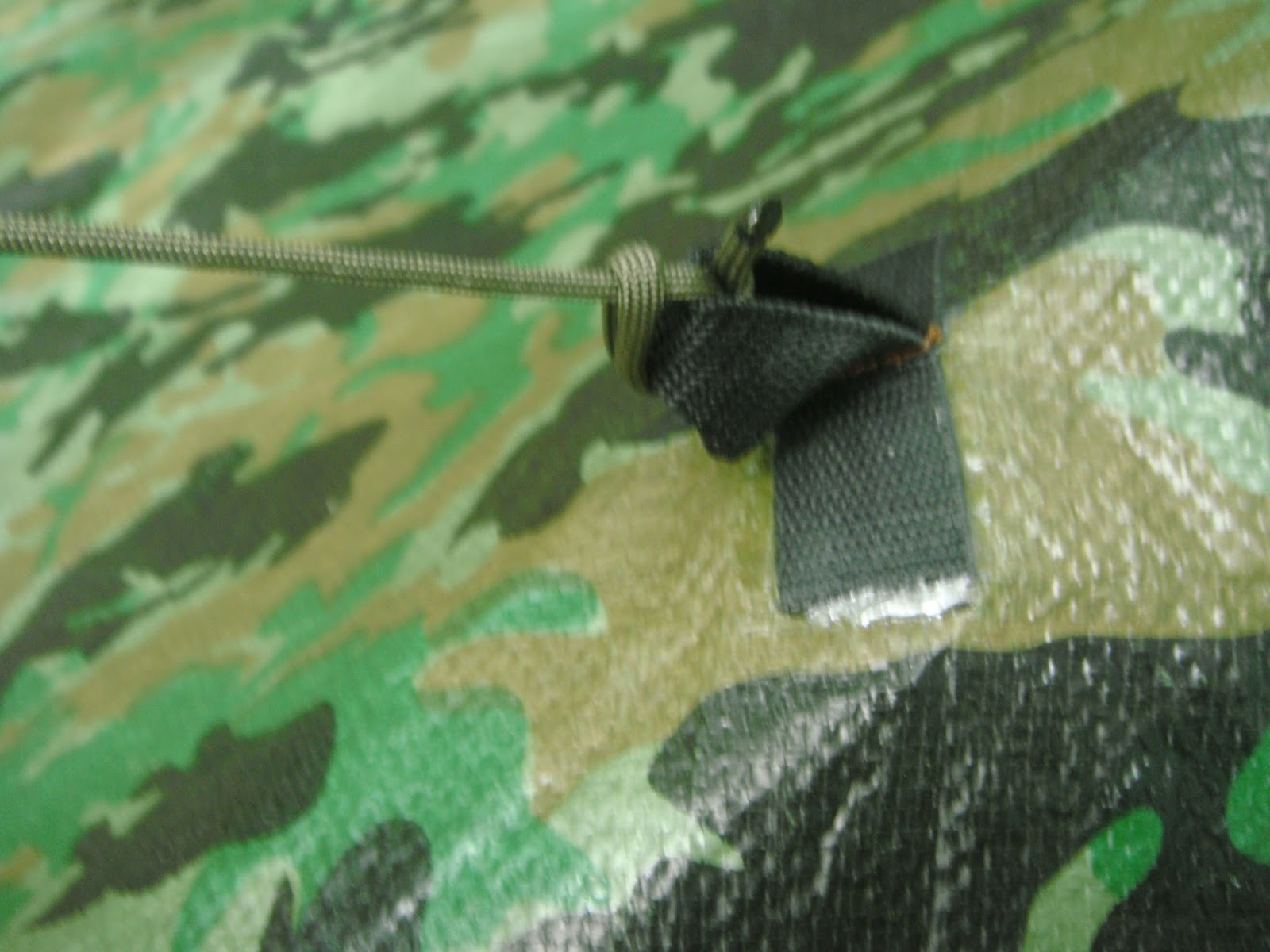

Attach one end of the guy line to the tarp’s center loop as pictured below.


Pull the other end of the guy line back to the back tree and wrap it around the tree a couple of feet higher than your bungee cord is attached to the front tree.  Tie the guy line off using the simple quick release knot pictured below.  Notice that the small stick is inserted into the finished loop to prevent accidentally
untying the knot.







That’s it.  You’re ready to move in for a good night’s sleep, and the next morning you can break camp as quick as you set it up.
